Description

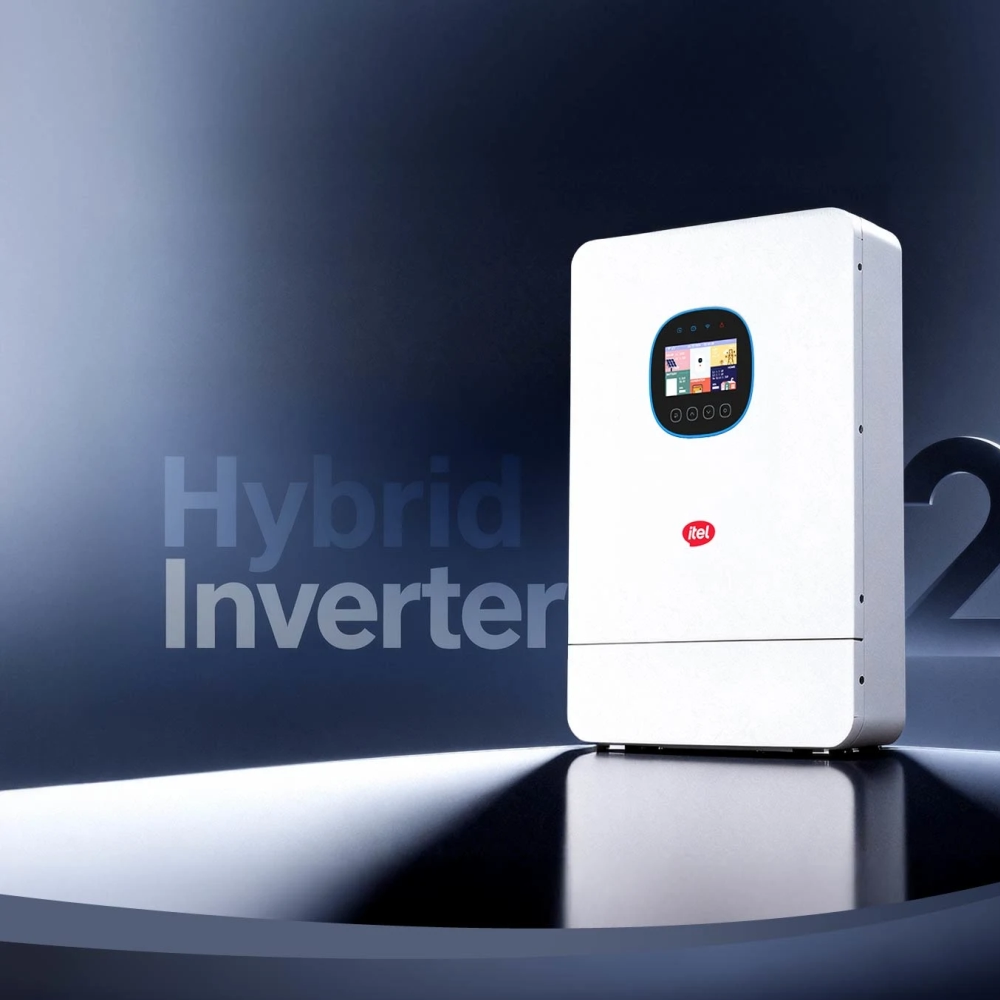

8kW 48V Dual MPPT Heavy-Duty Off-Grid Hybrid Solar Inverter
The iTel IPV-8K48T is an industrial-grade 8kW (8000W) 48V hybrid solar inverter engineered to power high-surge commercial loads, whole-home solar systems, and mini-grids. Equipped with Dual Independent MPPT Trackers supporting an extraordinary 16,000W (16kW) max PV array input, this unit maximizes solar energy harvest even in complex multi-roof orientations.
Solar Charging & Dual MPPT Specifications
- Max PV Input Power: 16,000W (16kW)
- Max PV Open Circuit Voltage: 525V DC
- MPPT Voltage Range: 75V – 500V DC
- Number of MPPT Trackers: 2 MPPTs
- Max Solar Charging Current: 160A
AC Output & Power Performance
- Nominal Output Power: 8000W (8000VA)
- Surge Rating: 16,000VA (2x Rated Power for 5s)
- Output Voltage Waveform: Pure Sine Wave (220V/230V/240V)
- Peak Battery Mode Efficiency: 95%
- Transfer Time: <10ms (UPS) / <20ms (Appliance)
Advanced Technical Features
- Dual MPPT Architecture: Two separate solar tracking channels handle solar panel strings facing different directions without efficiency losses.
- Scalable Microgrid Power: Supports parallel connections up to 12 units for single-phase or three-phase utility grid configurations.
- Dual Output Load Management: Dedicated Smart Load output terminal allowing programmable load shedding during extended power outages.
- IP54 Waterproof & Dust Protection: Sealed weather-resistant casing designed for tough installation environments.
- Flexible Battery Support: Full communication capabilities for Lithium-ion (LiFePO4) BMS and Lead-Acid battery banks via CAN/RS485/RS232.
Complete Technical Specifications Summary
| Model Code | IPV-8K48T |
| Nominal DC Battery Voltage | 48V DC (40V–60V Range) |
| Max Mains/Generator Charging Current | 140A |
| Dimensions (W x H x D) | 410 x 600 x 145.7 mm |
| Net Weight | 22.0 kg |
| Cooling Method | Intelligent Fan Cooling (<50 dB) |
| Safety Certifications | IEC62109-1, IEC62109-2, IEC61683 |
