Description

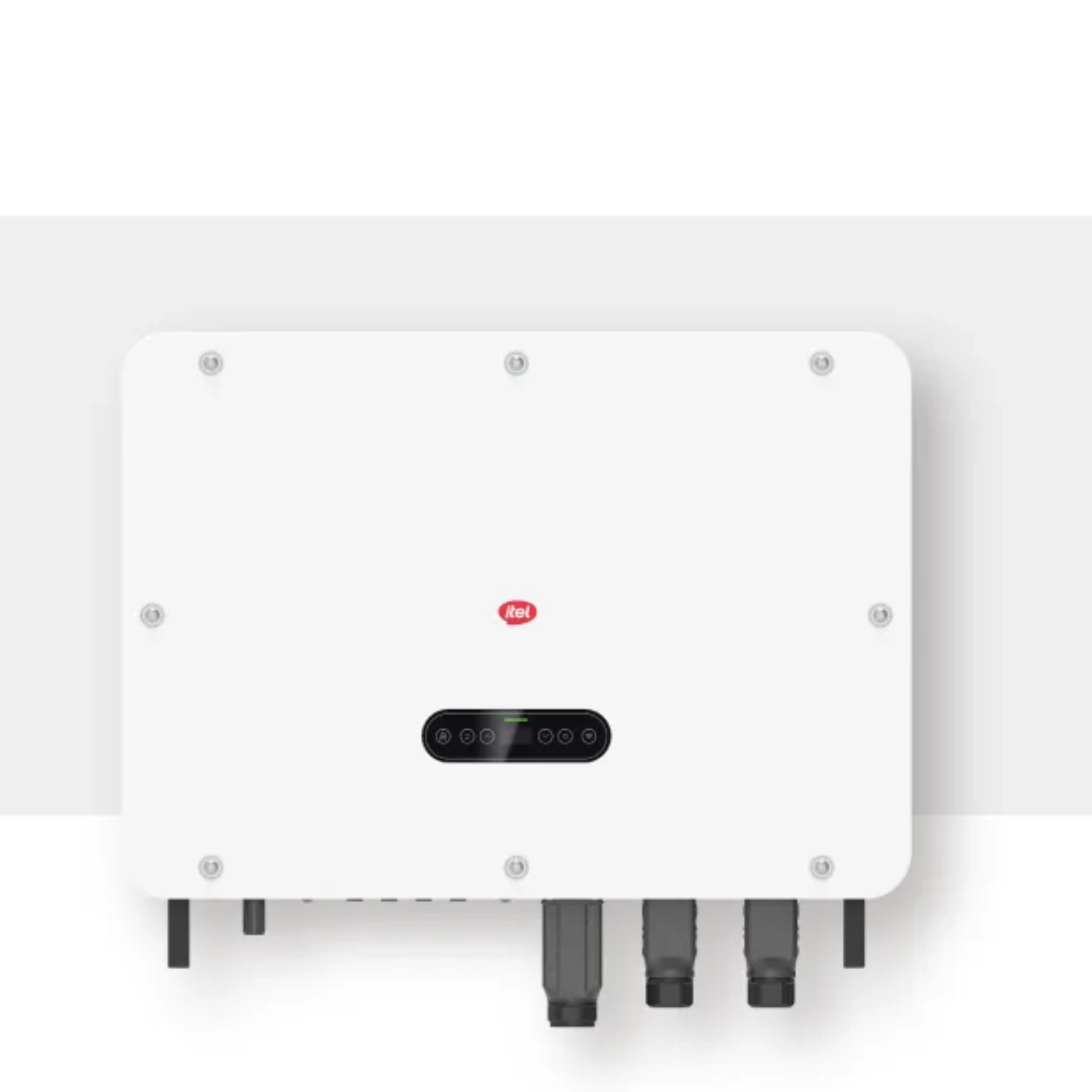

The iTel IHY-50KH3S is a heavy-duty 50kW 3-Phase hybrid solar inverter purpose-built for Commercial and Industrial (C&I) energy demands . Featuring 160% DC oversizing, it accepts up to 75kW of PV input to maximize energy harvesting in large-scale facilities . Note: This high-voltage inverter requires a minimum of 6x IPX-51314SPT battery modules connected in series to satisfy the 150V–840V operational range .
Solar Charging & MPPT Performance
- Max PV Input Power: 75kW (75,000W)
- Max DC Input Voltage: 1000V DC
- Number of MPPTs: 4 Trackers (2 Strings Each)
- Max Input Current: 40A per MPPT
- MPPT Tracking Efficiency: 99.90%
AC Output & C&I Scalability
- Nominal Output Power: 50kW (3-Phase)
- Surge Power Rating: 75kVA (150% Backup @ 10s)
- Battery Voltage Range: 150V – 840V DC
- Max Charge/Discharge: 150A
- Parallel Capability: Up to 10 Units
- IP66 Indoor/Outdoor Rating: Fully protected against heavy dust and water, making it ideal for versatile C&I deployments in harsh environments .
- 100% Unbalanced Output: Intelligently manages varying industrial loads across three phases to enhance self-consumption without grid reliance .
- Advanced Energy Dynamics: Features six programmable work modes supporting Time-of-Use (TOU) and dynamic pricing strategies to maximize operational cost savings .
- High-Voltage Battery Requirement: Engineered exclusively for high-capacity storage, requiring a minimum of 6 interconnected IPX-51314SPT units to boot.
| Model Code | IHY-50KH3S |
| System Phase | 3-Phase (3L+N+PE) |
| Dimensions (L x W x H) | 909 x 735 x 305 mm |
| Net Weight | 89 kg |
| Communication Options | WIFI, CAN, RS485, Dry Contact, LAN |
| Safety Certifications | IEC62109, IEC61000 |
